Webhooks allow you to receive real-time HTTP notifications when events occur in Kanman. Instead of constantly polling the API to check for changes, webhooks push updates to you the moment something happens. This makes them perfect for building responsive integrations, sending notifications to team chat apps, syncing data with external systems, and triggering automated workflows.

When a relevant event occurs—like a task being created or completed—Kanman immediately sends an HTTP POST request to your specified endpoint with all the details. Your server can then process this information however you need: update an external database, send a Slack message, trigger a CI/CD pipeline, or anything else you can imagine.

Overview

When you configure a webhook:

You provide a URL endpoint
You select which events to listen for
When those events occur, Kanman sends an HTTP POST to your URL
Your server processes the notification

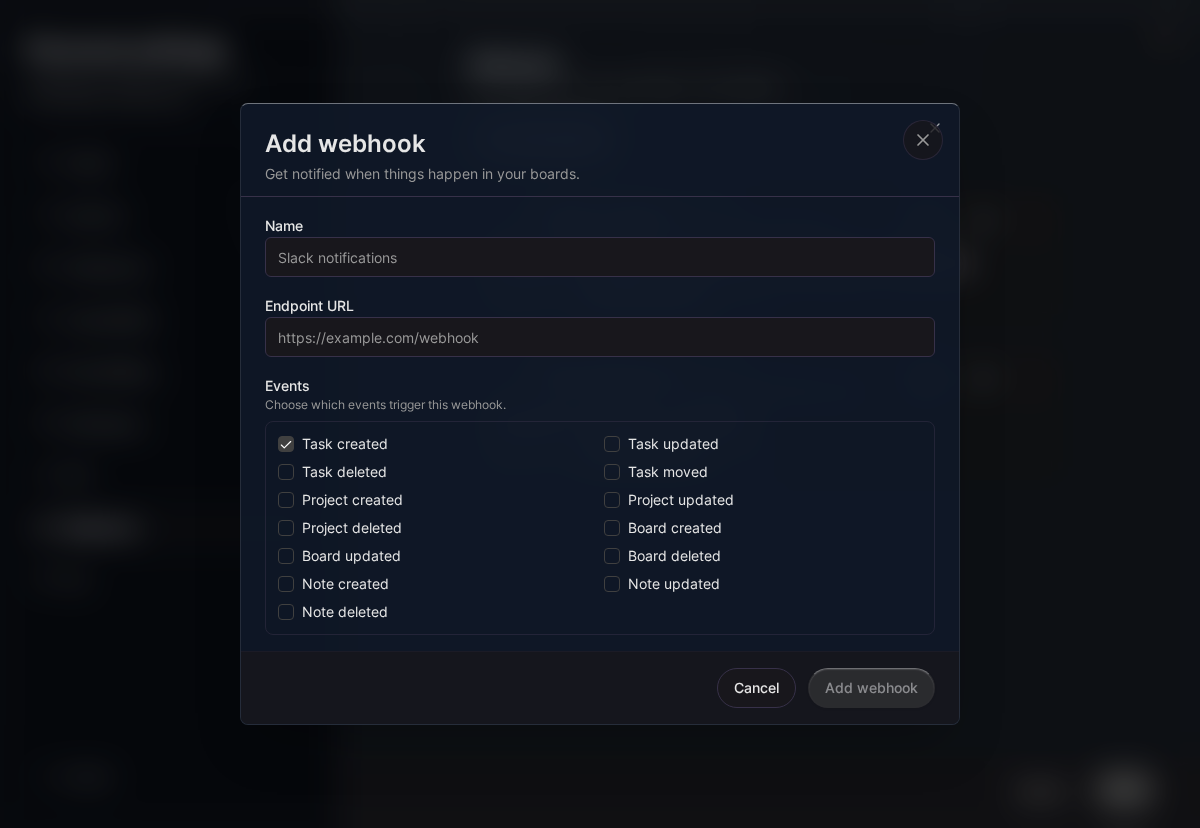

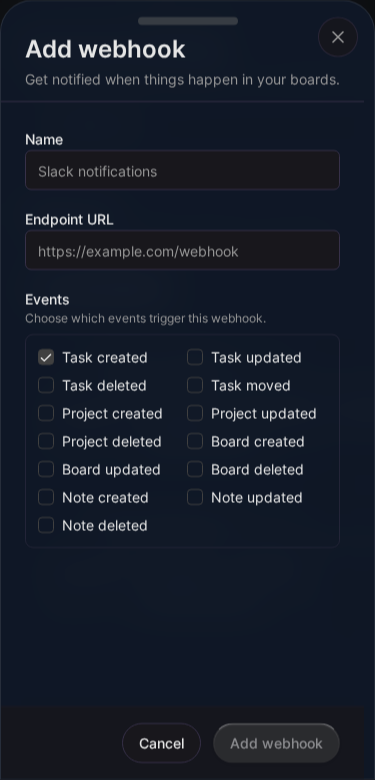

Creating a Webhook

Go to Settings > Integrations > Webhooks
Click Create Webhook
Configure:
- Name: Descriptive name (e.g., “Slack Notifications”)
- URL: Your endpoint (must be HTTPS)
- Events: Select events to receive
- Secret: Auto-generated or custom (for signature verification)
Click Create

Webhook Properties

Property	Description
`name`	Descriptive name (1-100 chars)
`url`	Endpoint URL (HTTPS required)
`secret`	Shared secret for HMAC signatures
`events`	Array of event types to receive
`is_active`	Enable/disable webhook

Webhook Limits

Plan	Max Webhooks	Deliveries/Month
Pro	5	12,000
Teams	20	60,000

Events

Task Events

`task.created`

Fired when a new task is created.

{
  "event": "task.created",
  "timestamp": "2024-01-21T10:30:45Z",
  "data": {
    "id": "770e8400-e29b-41d4-a716-446655440000",
    "label": "Design landing page",
    "status": 0,
    "project_id": "660e8400-e29b-41d4-a716-446655440000",
    "description": null,
    "created_at": "2024-01-21T10:30:45Z"
  }
}

`task.updated`

Fired when a task is modified (label, status, description, or project).

{
  "event": "task.updated",
  "timestamp": "2024-01-21T11:15:00Z",
  "data": {
    "id": "770e8400-e29b-41d4-a716-446655440000",
    "label": "Design landing page",
    "status": 1,
    "project_id": "660e8400-e29b-41d4-a716-446655440000",
    "description": "Updated description",
    "updated_at": "2024-01-21T11:15:00Z",
    "changes": {
      "status": {
        "old": 0,
        "new": 1
      }
    }
  }
}

`task.deleted`

Fired when a task is soft-deleted (moved to trash).

{
  "event": "task.deleted",
  "timestamp": "2024-01-21T14:00:00Z",
  "data": {
    "id": "770e8400-e29b-41d4-a716-446655440000",
    "label": "Design landing page",
    "project_id": "660e8400-e29b-41d4-a716-446655440000",
    "deleted_at": "2024-01-21T14:00:00Z"
  }
}

`task.moved`

Fired when a task is moved to a different project or reordered.

{
  "event": "task.moved",
  "timestamp": "2024-01-21T12:00:00Z",
  "data": {
    "id": "770e8400-e29b-41d4-a716-446655440000",
    "label": "Design landing page",
    "from_project_id": "660e8400-e29b-41d4-a716-446655440000",
    "to_project_id": "660e8400-e29b-41d4-a716-446655440001",
    "position": "aab"
  }
}

Project Events

`project.created`

{
  "event": "project.created",
  "timestamp": "2024-01-21T09:00:00Z",
  "data": {
    "id": "660e8400-e29b-41d4-a716-446655440000",
    "label": "Q1 Marketing Campaign",
    "board_id": "550e8400-e29b-41d4-a716-446655440000",
    "description": null,
    "created_at": "2024-01-21T09:00:00Z"
  }
}

`project.updated`

{
  "event": "project.updated",
  "timestamp": "2024-01-21T10:00:00Z",
  "data": {
    "id": "660e8400-e29b-41d4-a716-446655440000",
    "label": "Q1 Marketing Campaign - Updated",
    "board_id": "550e8400-e29b-41d4-a716-446655440000",
    "description": "New description",
    "updated_at": "2024-01-21T10:00:00Z",
    "changes": {
      "label": {
        "old": "Q1 Marketing Campaign",
        "new": "Q1 Marketing Campaign - Updated"
      }
    }
  }
}

`project.deleted`

{
  "event": "project.deleted",
  "timestamp": "2024-01-21T15:00:00Z",
  "data": {
    "id": "660e8400-e29b-41d4-a716-446655440000",
    "label": "Q1 Marketing Campaign",
    "board_id": "550e8400-e29b-41d4-a716-446655440000",
    "deleted_at": "2024-01-21T15:00:00Z"
  }
}

Board Events

`board.created`

{
  "event": "board.created",
  "timestamp": "2024-01-21T08:00:00Z",
  "data": {
    "id": "550e8400-e29b-41d4-a716-446655440000",
    "label": "Marketing",
    "description": null,
    "icon_name": "megaphone",
    "created_at": "2024-01-21T08:00:00Z"
  }
}

`board.updated`

{
  "event": "board.updated",
  "timestamp": "2024-01-21T09:30:00Z",
  "data": {
    "id": "550e8400-e29b-41d4-a716-446655440000",
    "label": "Marketing & Communications",
    "description": "All marketing activities",
    "updated_at": "2024-01-21T09:30:00Z",
    "changes": {
      "label": {
        "old": "Marketing",
        "new": "Marketing & Communications"
      }
    }
  }
}

`board.deleted`

{
  "event": "board.deleted",
  "timestamp": "2024-01-21T16:00:00Z",
  "data": {
    "id": "550e8400-e29b-41d4-a716-446655440000",
    "label": "Marketing",
    "deleted_at": "2024-01-21T16:00:00Z"
  }
}

Note Events

`note.created`

{
  "event": "note.created",
  "timestamp": "2024-01-21T11:00:00Z",
  "data": {
    "id": "990e8400-e29b-41d4-a716-446655440000",
    "title": "Meeting Notes",
    "board_id": "550e8400-e29b-41d4-a716-446655440000",
    "created_at": "2024-01-21T11:00:00Z"
  }
}

`note.updated`

{
  "event": "note.updated",
  "timestamp": "2024-01-21T11:30:00Z",
  "data": {
    "id": "990e8400-e29b-41d4-a716-446655440000",
    "title": "Meeting Notes - Updated",
    "board_id": "550e8400-e29b-41d4-a716-446655440000",
    "updated_at": "2024-01-21T11:30:00Z"
  }
}

`note.deleted`

{
  "event": "note.deleted",
  "timestamp": "2024-01-21T17:00:00Z",
  "data": {
    "id": "990e8400-e29b-41d4-a716-446655440000",
    "title": "Meeting Notes",
    "board_id": "550e8400-e29b-41d4-a716-446655440000",
    "deleted_at": "2024-01-21T17:00:00Z"
  }
}

HTTP Request

Headers

Every webhook request includes these headers:

Header	Description
`Content-Type`	`application/json`
`X-Kanman-Event`	Event type (e.g., `task.created`)
`X-Kanman-Delivery`	Unique delivery ID (UUID)
`X-Kanman-Timestamp`	Unix timestamp of the event
`X-Kanman-Signature`	HMAC-SHA256 signature

Signature Verification

Verify webhook authenticity using the signature:

const crypto = require('crypto');

function verifySignature(payload, signature, secret, timestamp) {
  const expectedSignature = crypto
    .createHmac('sha256', secret)
    .update(`${timestamp}.${JSON.stringify(payload)}`)
    .digest('hex');

  return `sha256=${expectedSignature}` === signature;
}

// In your webhook handler
app.post('/webhook', (req, res) => {
  const signature = req.headers['x-kanman-signature'];
  const timestamp = req.headers['x-kanman-timestamp'];

  if (!verifySignature(req.body, signature, WEBHOOK_SECRET, timestamp)) {
    return res.status(401).send('Invalid signature');
  }

  // Process the webhook
  const { event, data } = req.body;
  console.log(`Received ${event}:`, data);

  res.status(200).send('OK');
});

Python Example

import hmac
import hashlib
import json
from flask import Flask, request

app = Flask(__name__)
WEBHOOK_SECRET = 'your_webhook_secret'

def verify_signature(payload, signature, timestamp):
    message = f"{timestamp}.{json.dumps(payload)}"
    expected = 'sha256=' + hmac.new(
        WEBHOOK_SECRET.encode(),
        message.encode(),
        hashlib.sha256
    ).hexdigest()
    return hmac.compare_digest(expected, signature)

@app.route('/webhook', methods=['POST'])
def webhook():
    signature = request.headers.get('X-Kanman-Signature')
    timestamp = request.headers.get('X-Kanman-Timestamp')

    if not verify_signature(request.json, signature, timestamp):
        return 'Invalid signature', 401

    event = request.json.get('event')
    data = request.json.get('data')

    print(f"Received {event}: {data}")

    return 'OK', 200

Response Requirements

Your webhook endpoint should:

Return 2xx status within 10 seconds
Respond quickly - do heavy processing asynchronously
Be idempotent - handle duplicate deliveries gracefully

Good Response

HTTP/1.1 200 OK

Bad Response

HTTP/1.1 500 Internal Server Error

Failure Handling

Automatic Retries

Kanman doesn’t retry failed webhooks. Each event is sent once.

Failure Count

Failed deliveries increment a failure counter. After 5 consecutive failures, the webhook is automatically disabled.

Re-enabling

Go to Settings > Webhooks
Find the disabled webhook
Fix the underlying issue
Click Enable

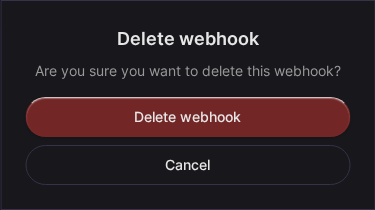

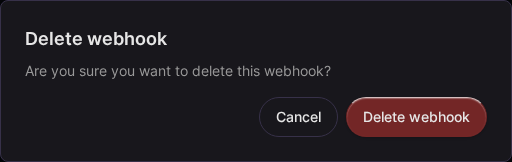

Deleting a Webhook

Go to Settings > Webhooks
Click the webhook to open it
Click Delete
Confirm deletion

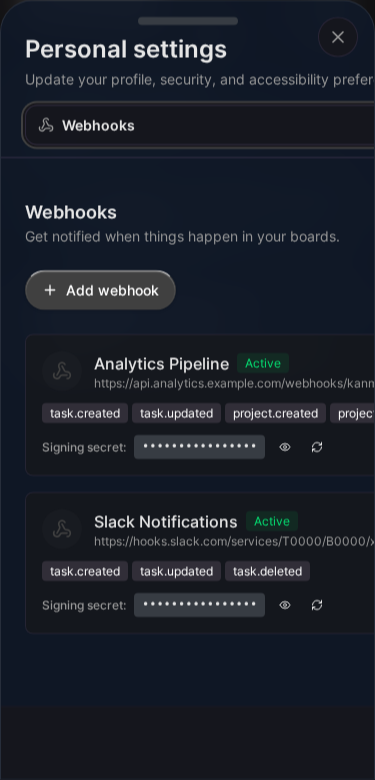

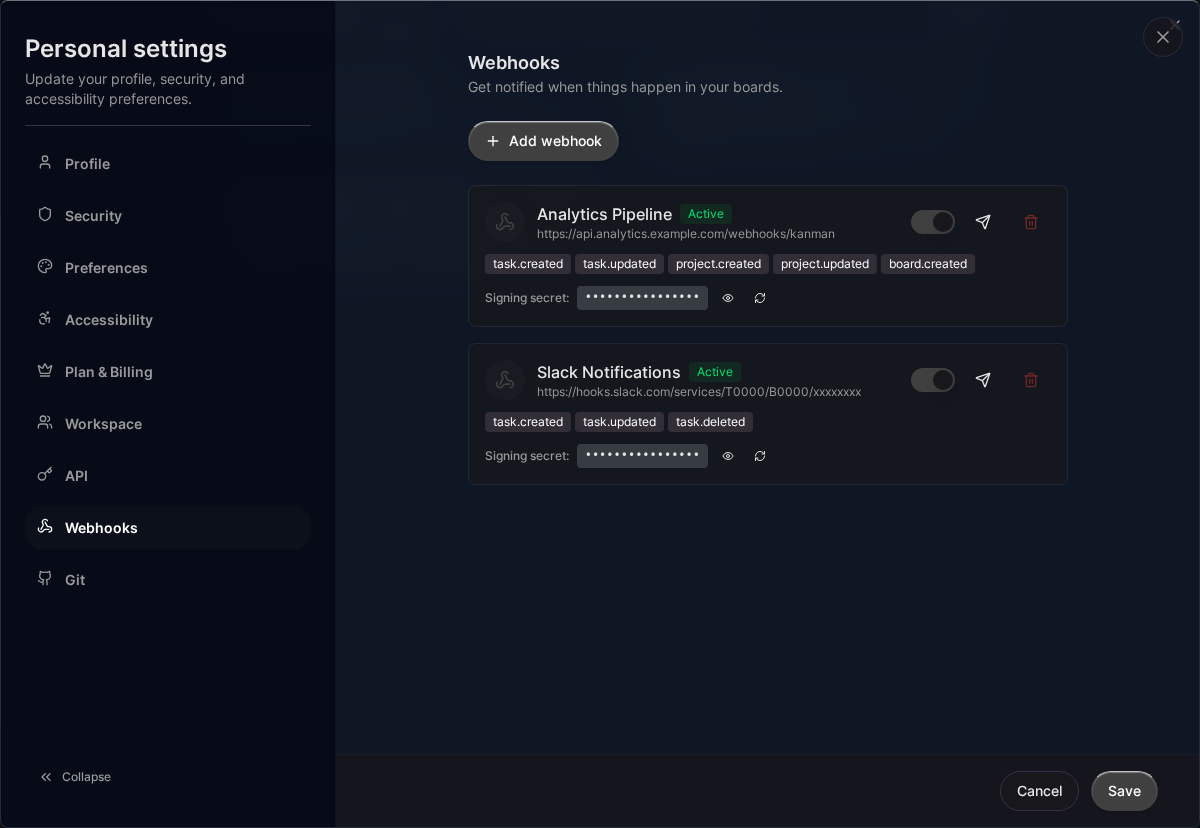

Delivery History

View recent deliveries:

Go to Settings > Webhooks
Click on a webhook
View Recent Deliveries

Each delivery shows:

Event type
Timestamp
Response status
Response time
Payload (expandable)

The last 100 deliveries are retained.

Testing Webhooks

Test Delivery

Go to Settings > Webhooks
Click on a webhook
Click Send Test
A test ping event is sent

Test Payload

{
  "event": "ping",
  "timestamp": "2024-01-21T10:00:00Z",
  "data": {
    "message": "Webhook test from Kanman"
  }
}

Local Development

For testing locally, use a tunnel service:

# Using ngrok
ngrok http 3000

# Use the generated URL as your webhook endpoint
# https://abc123.ngrok.io/webhook

Use Cases

Slack Notifications

Send task updates to Slack:

app.post('/webhook', async (req, res) => {
  const { event, data } = req.body;

  if (event === 'task.created') {
    await fetch(SLACK_WEBHOOK_URL, {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify({
        text: `New task created: ${data.label}`
      })
    });
  }

  res.sendStatus(200);
});

Sync with External System

Keep an external database in sync:

app.post('/webhook', async (req, res) => {
  const { event, data } = req.body;

  switch (event) {
    case 'task.created':
      await externalDB.tasks.create(data);
      break;
    case 'task.updated':
      await externalDB.tasks.update(data.id, data);
      break;
    case 'task.deleted':
      await externalDB.tasks.delete(data.id);
      break;
  }

  res.sendStatus(200);
});

Analytics Tracking

Track task completions:

app.post('/webhook', async (req, res) => {
  const { event, data } = req.body;

  if (event === 'task.updated' && data.changes?.status?.new === 2) {
    await analytics.track('task_completed', {
      taskId: data.id,
      projectId: data.project_id,
      completedAt: data.updated_at
    });
  }

  res.sendStatus(200);
});

Best Practices

Verify signatures - Always validate webhook authenticity
Respond quickly - Return 200 immediately, process async
Handle duplicates - Use delivery ID for idempotency
Log deliveries - Keep records for debugging
Monitor failures - Alert on repeated failures
Use HTTPS - Never use plain HTTP endpoints
